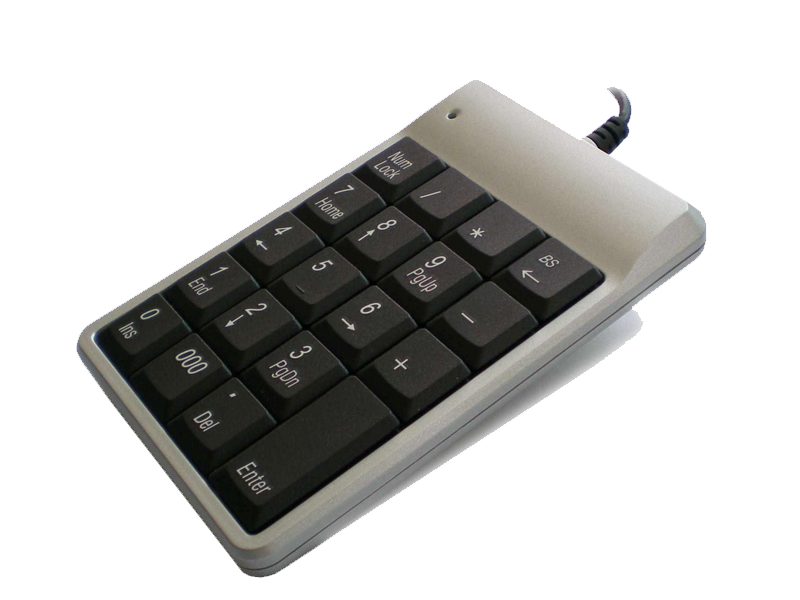

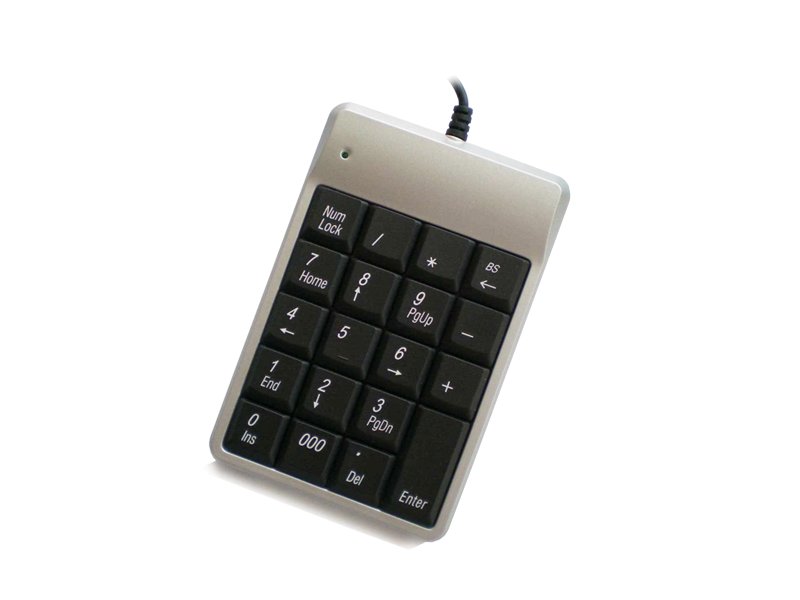

LU-202 keypad is an idea of external keypad for notebook users. Thanks to its scissor-type key switch, it makes keypad low profile and good tactile response for quiet and easy typing. Furthermore, LU-202 is also support non-synchronous function. This feature can let keypad independently used from the notebook keyboard, leaving the notebook keyboard free for text typing. It is fully compatible with Windows OS.
| Key Numbers | 19 keys |
| Key Switch | Scissor-type key switch |
| Switch Life Cycle | 5 million life cycle time |
| Key Force | 60 +/- 8 gm |
| Traveling Distance | 2.1 +/- 0.2mm |
| Input Power | 5Vdc, 100mA |
| Interface | USB 1.1 version |
| Special Feature | Non-Synchronized support, driverless |
| Operating Temperature | 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius) |
| Storage temperature | -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius) |
| Dimension (mm) | 120.0 (L) x 79.5 (W) x 15 (H) |
