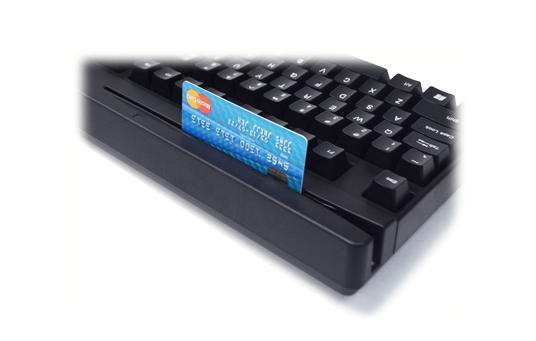

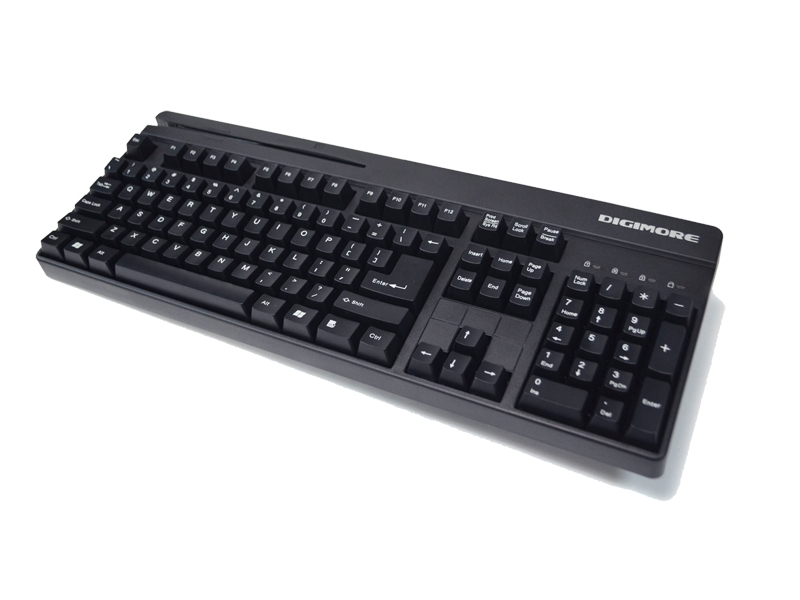

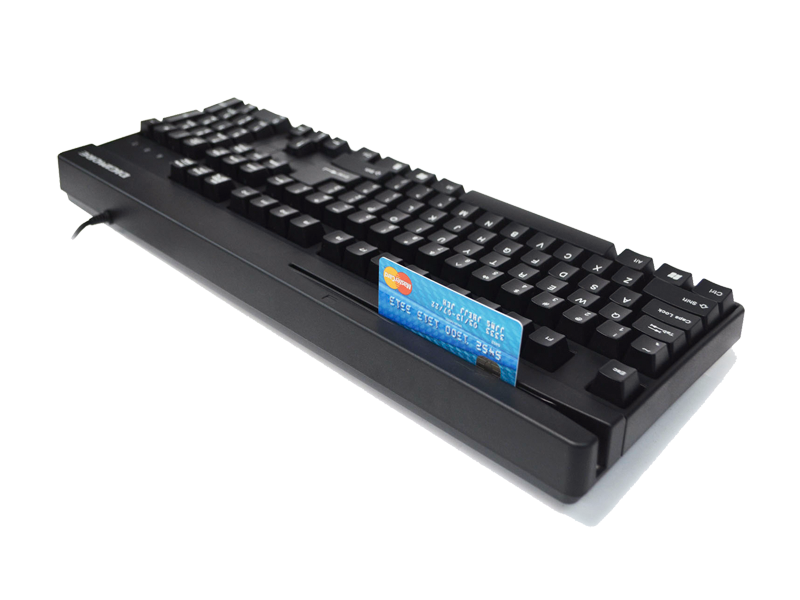

Digimore POS Keyboard, KB-6868-MSR, features an enhanced keyboard layout with a built-in 3 tracks magnetic stripe reader for use in banking Point of Sale application and secure Credit Cards. This full-sized keyboard is designed for any desktop, kiosk, office, or warehouse. Antimicrobial ABS material (option) is also available upon requested.
| Keyboard | |
| Key Numbers | 104/ 105/ 109 keys (US/ EU/ JP) |
| Key Switch Mechansim | Membrane-type Key switch with 20 million life cycle time |
| Total Travel Distance | 4 +/- 0.4 mm |
| Key Force (Peak Load) | 50 +/- 7g |
| Interface | USB 1.1 Version |
| Input Power | 5Vdc, < 100mA |
| Key Caps | Ergonomic keycap design with 5 different height |
| LEDs Indicator | LumLock, CapsLock, ScrolLock, Power and Magnetic Stripe Card Reader |
| Magnetic Stripe Card Reader | |
| Number of Tracks | Track 1 & 2 or Track 1, 2, &3 |
| Compatibility | ISO 7810 and 7811-1~ 6 cards/ Reads AAMVA driver license cards |
| Communications | Decoded track data sent through keyboard communication cable |
| Output Data Formatting | Default card data output format or customized data output format is programmable through PC configuration utility |
| Operating Life | 1,000,000 card swipes |
| Card Speed Range | 3 to 60 IPS (inches per second) |
| Audio Beeper | Indicates error free card data reading |
| Others | |
| Operating Temperature | 0 to 50 degrees Celsius (10% to 95% RH, no condensation) |
| Storage temperature | -10 to 65 degrees Celsius (10% to 95% RH, no consdensation) |
| Physical Dimension | 450.17 (L) x 171 (D) x 37.29(H) mm/ 1.0 kg (N.W.) |
| Box Dim. / Weight | 500 (L) x 220 (D) x 55 (H) mm/ 1.3 Kg (G.W.) |
