PK-2068

26 Keys Programable POS Keypad, 22 Relengedable Keys

PK-2068

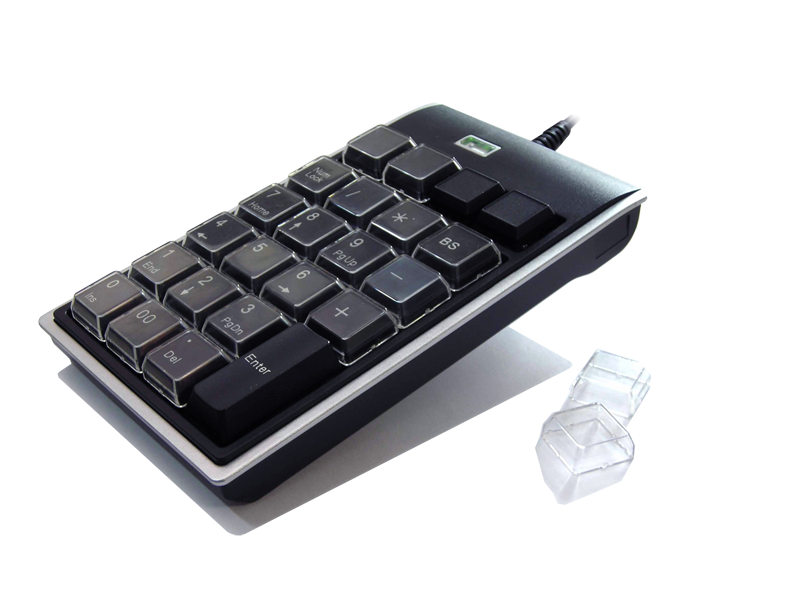

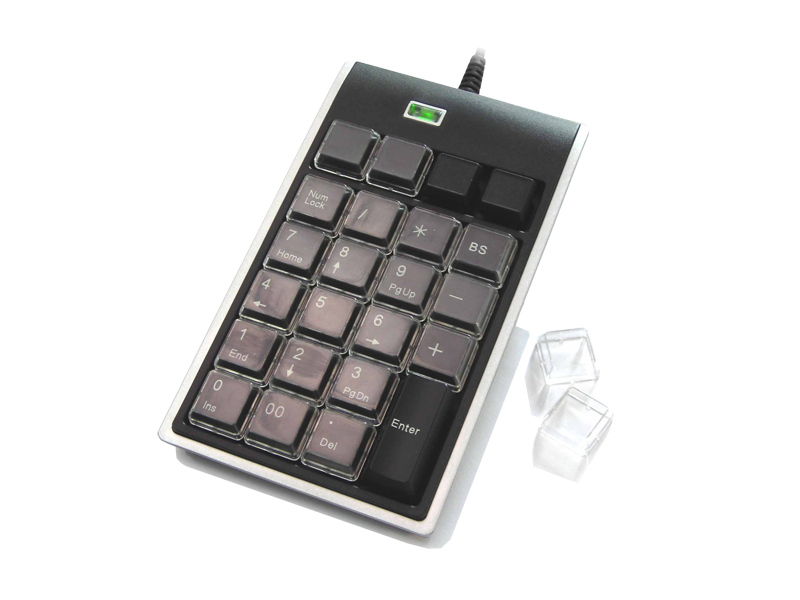

26 KEYS PROGRAMMABLE POS KEYPAD

PK-2068, programmable keypad is specially designed for POS VARs which need specified macros to execute repetitive keystrokes and texts. The PK-2068 is easy to program by using Windows compatible software provided. The non-volatile built-in ROM allows the keypad to be used under IBM compatible PCs without installing resident software. VARs can be user-defined with up to 30 characters per key, except ”Enter“ key. PK-2068 includes 26 programmable/ 22 relegendable keys that allow the users to label them.

FEATURE

  • PK-2068 is easy to program by using Windows compatible software provided
  • All programmed data are stored in Flash Memory, without battery
  • POS VARs can be user-defined with up to 30 characters per key, except ”Enter“ key
  • PK-2068 includes 26 programmable/ 22 relegendable keys that allow the users to label them

SPECIFICATION

Keypad
Key Numbers 23 keys, 26 programmable keys with 22 relegendable keys

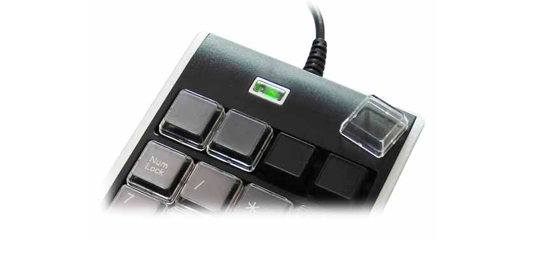

LED Indicator LED in green in mode 1, 4 programmable keys, LED in orange in mode 2, 22 programmable keys except Enter key
Switch Mode 1 and Mode 2 by pressing switch
Key Switch Mechanism Membrane-type Key switch with 10 million life cycle time
Total Travel Distance 4 +/- 0.5 mm
Key Force (Peak Load) 55 +/- 7 g
Interface USB 1.1 Version, USB 2.0 Hub (option)
Input Power 5Vdc, < 100mA
Programmable Features
Programmable Keys 23 keys can be programmable including 22 relegendable keys
Multi-Level Program Support 2 levels, equivalent to 26 keys with 30 characters per key
Software Compatibility Support USB programming in Windows OS
Memory All programmed data are stored in non-volatile ROM, without battery
Operating Temperature 0 to 50 degrees Celsius (10% to 95% RH, no condensation)
Storage temperature -10 to 55 degrees Celsius (10% to 95% RH, no consdensation)
Physical Dimension 156 (L) x 91 (D) x 25 (H) mm/ 200 kg (N.W.)
Carton Dim. / Weight 40 pcs/CTN; 492 (L) x 433 (D) x 353 (H) mm/ 13.2 Kgs (G.W.)
Accessories CD disk, Keycap Puller
