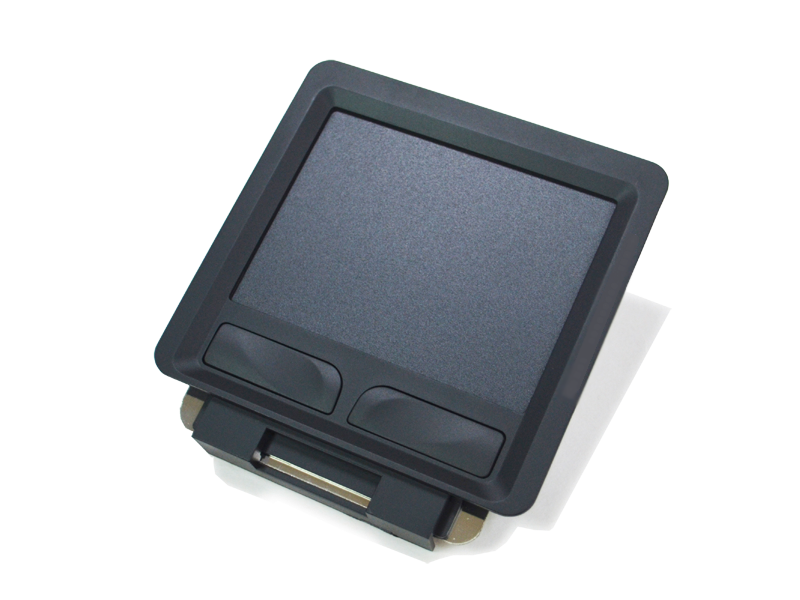

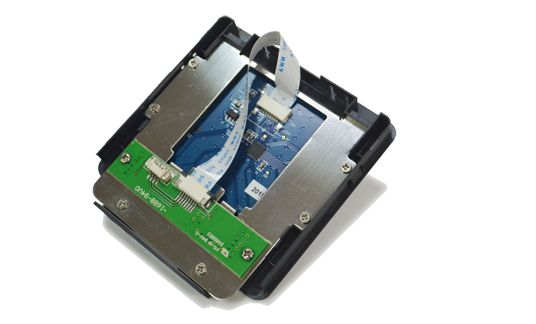

TPM-3000 TouchPad Module is a pointing device that includes two switches, left button and right button. It also features an emulated scroll wheel of a mouse. To move the cursor, the user can just lightly slide on the device surface by finger. Thanks to modularize mechanical design, it provides flexible product configuration and easy maintenance.
| Interface | PS/2 (USB also available upon requested) |
| Resolution | 300 dpi |
| Button / Scroll Wheel | Left button and right button / Emulated scroll wheel function |
| Operation Voltage | 5V +/- 0.3 |
| Operation Curret | 3.4mA |
| Voltage Fluctuation | <= 100mA |
| Voltage Rise Time | <= 1ms |
| Displacement Magnification | 1.00 ~ 1.27 |
| The Fastest Speed | 117 cm/s |
| ESD | Contact: +/-4KV; Non-contact: +/- 8KV |
| Operating Temperature | 5 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius) |
| Storage Temperature | -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius) |
| Sensor Area | 65 +/-0.2 (L) x 49 +/- 0.2mm |
| Module Dimension | 76 (L) x 80 (W) x 8.85 (H) mm |
| Weight | 50 +/- 2g (with metal plate & plastic frame) |
