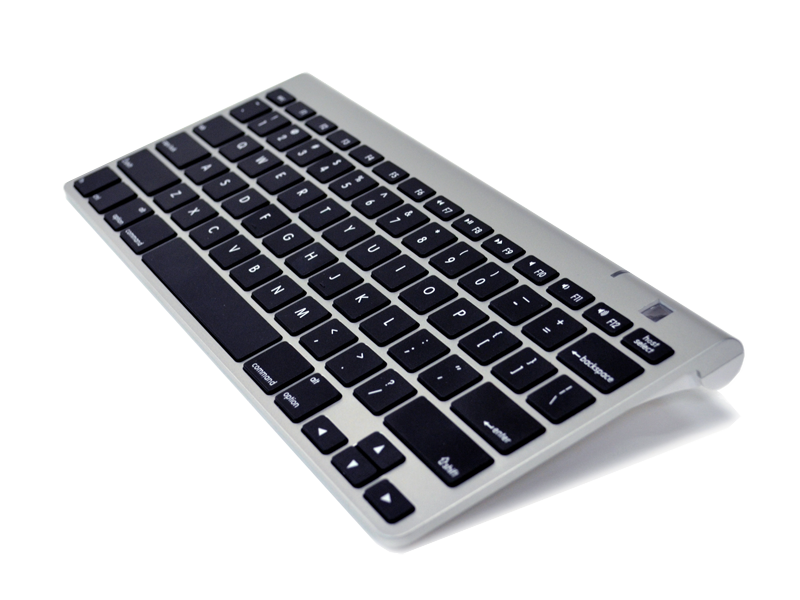

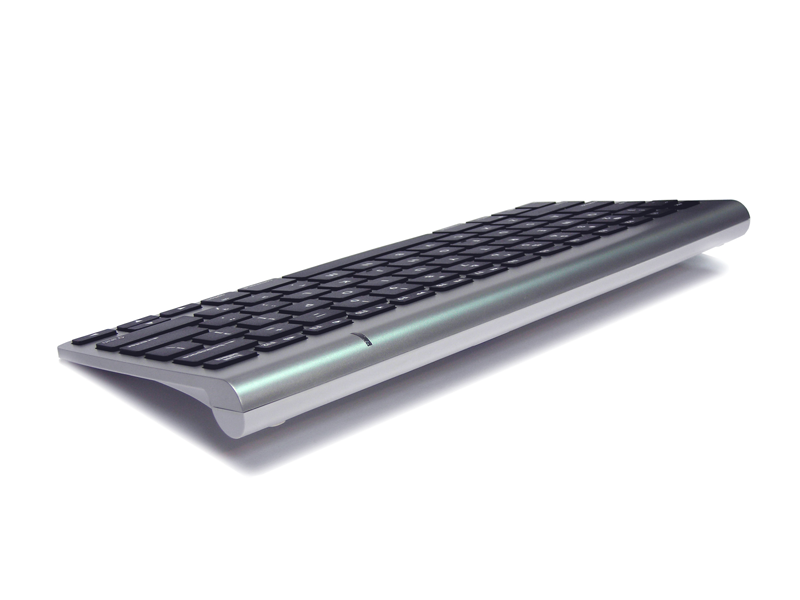

WKB-803A

Multi-link / Multi-device compact Wireless Keyboard

WKB-803A

COMPACT SIZE BLUETOOTH DESKTOP KEYBOARD

WKB-803A, is at the forefront of cutting edge wireless keyboard with multi-link switchable feature (Patented). It is an ideal wireless keyboard for using iMac, iPad, iPhone or other Android OS Tablets in between, thanks to multi-host switchable feature. This compact size keyboard comes equipped with Wireless 3.0 technology with 2 x AA batteries, scissor-type key mechanism among many other features.

FEATURE

  • 78/ 79 keys (US/EU)
  • Low profile and compact size design
  • Scissor-type key switch mechanism makes good touch feeling

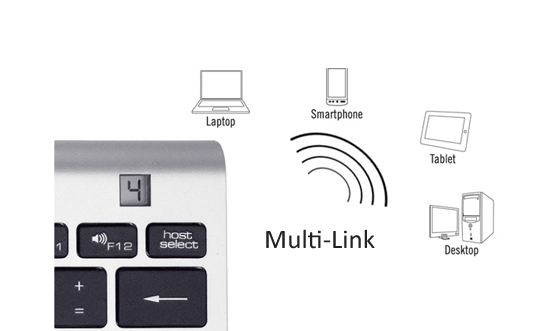

  • Multi-host/ multi-link switchable support
  • 1 digit HTN display to indicate host channel
  • Wireless 3.0 wireless technology
  • High reliable membrane contact technology
  • Fully compatible with Mac OS X, 10.5 or higher

SPECIFICATION

Key Numbers 78/ 79 keys (US/ EU layout)
Tx Technology wireless technology, V. 3.0
Feature Key "host select" key+1,2~8 keys for host selection
HTN Display 1 digit HTN display, monochrome
No. of Host Register Register up to 8 different host
Antenna/ Antenna Gain PCB antenna/ 0 dBi (Typ)
Frequency/ Channels 2.402Ghz ~ 2.480Ghz/ 79 channels
Modulation GFSK (differntial phase shift keying)
Operating Range Up to 8M (open field)
Key Switch Scissor-type switch with rubber dome
Key Force/ Traveling 55 +/- 7g, 2.1 +/-0.2mm (traveling distance)
LED Indicator 1 LED indicates pairing (blinking), CapLock, and low battery
Function Keys for Mac F1 less brightness, F2 increase brightness, F3, Expose, F4 dashboard
Fn Key + F1~F12 Keys Holding Fn key and pressing F1 for example is Help under Windows
Switch/ Button 1 x power switch, 1 x pairing button
Power Source 3.0VDC, 2 x AA Alkaline batteries
Dimension/ Weight 285.0 (L) x 132.0 (W) x 18.5 (H)mm/ 0.4 kgs (NW)
Compatibility Compatible with Windows XP or later, Mac OS 10.5.8 or later version, iPad, iPhone 3Gs/4, other MID with Android OS
Accessories 2 x AA batteries, user's manual
