WKB-801A

Multi-Link/ Multi-Device WIRLELESS MAC COMPATIBLE KEYBOARD

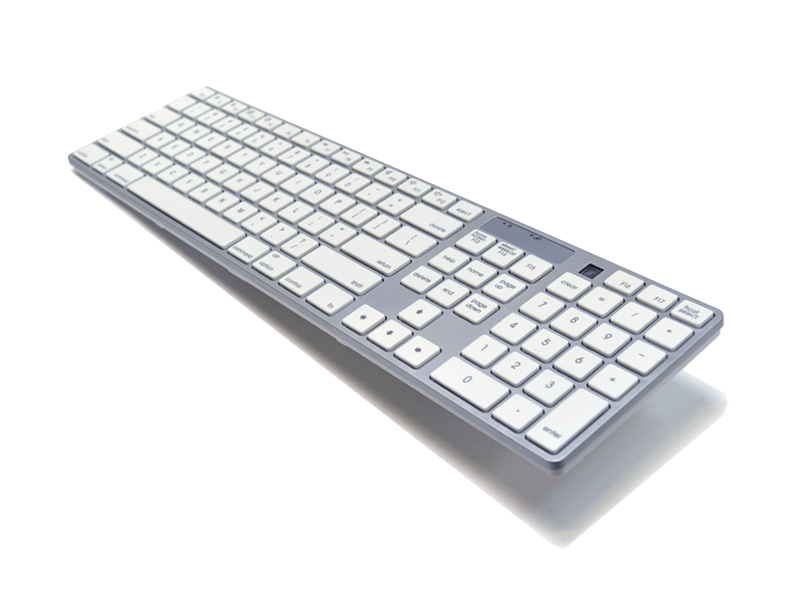

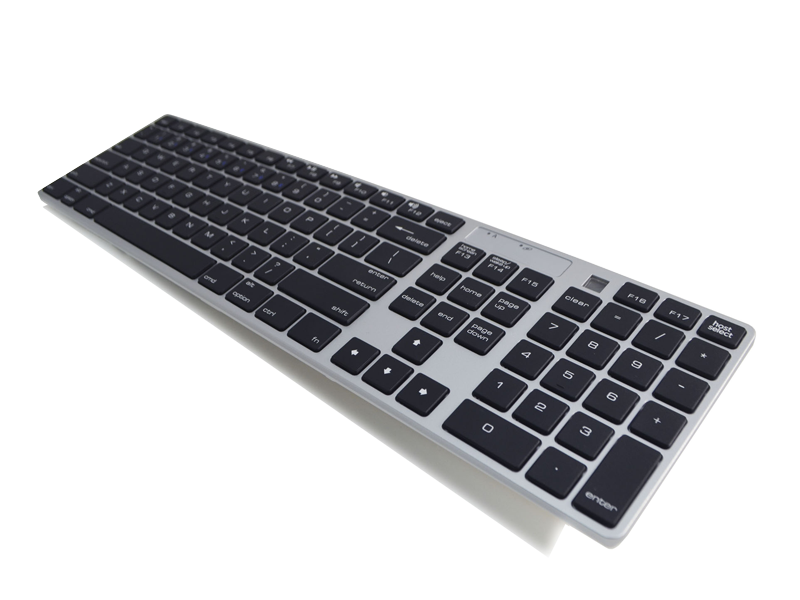

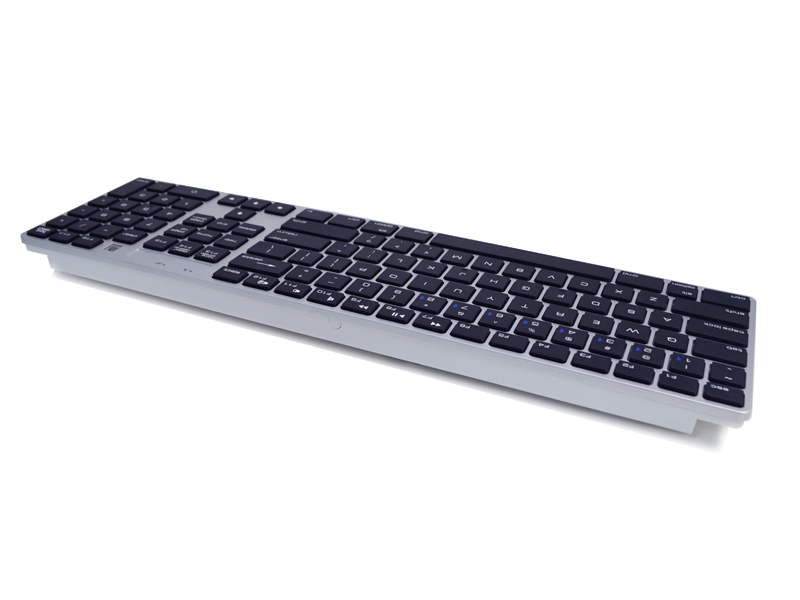

WKB-801A, a stylish & low profile Wireless keyboard, is at the forefront of cutting edge wireless keyboard with multi-host switchable feature (patent).It is an ideal wireless keyboard for using iMac, iPad, iPhone or other Android OS Tablets in between, thanks to multi-host switchable feature. This full size keyboard come equipped with Wireless 3.0 technology with 2 x AA batteries, scissor-type key mechanism among many other features.

FEATURE

110/ 111 keys (US/EU)
Scissor-type key switch mechanism makes good touch feeling

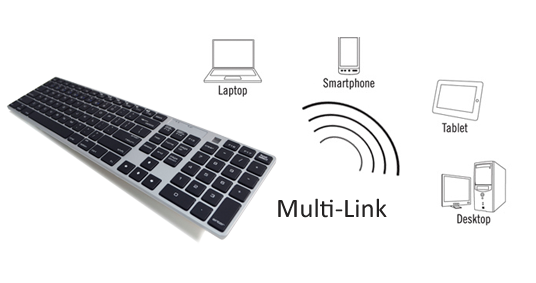

Multi-Link/ Multi-Device switchable Support up to 8 different devices
1 digit HTN display to indicate host channel
Wireless 3.0 wireless technology
High reliable membrane contact technology
Fully compatible with Mac OS X, 10.5 or higher

SPECIFICATION

Key Numbers	110/ 111 keys (US/ EU layout)
Feature Key	"host select" key for Bluetooth host selection
Number of Host	Register up to 8 different Bluetooth enabled devices
HTN Display	1 digit HTN display, monchrome
Tx Technology	Wireless technology, V. 3.0
Antenna/ Antenna Gain	PCB antenna/ 0 dBi (Typ)
Frequency/ Channels	2.402Ghz ~ 2.480Ghz/ 79 channels
Operating Range	Up to 8M (open field)
Key Switch	Scissor-type key switch with rubber dome
Key Force/ Traveling	55+/- 7g ; 2.1+/-0.2mm
LED Indicator	2 LED indicates pairing (blinking), CapLock, and Power On, Host Link
Function Keys for Mac	F1 less brightness, F2 increase brightness, F3, Expose, F4 dashboard
Function Keys for iPhone/ iPad	F13 Home, F14 Sleep/Wake, eject On-screen keyboard
Switch/ Button	1 x power switch, 1 x pairing button
Power Source	3.0VDC, 2 x AA Alkaline batteries
Dimension/ Weight	434.2 (L) x 115.3 (W) x 23.5 (H)mm/ 0.6 kgs (NW), 0.8kgs (GW)
Compatibility	Compatible with Mac OS 10.5.8 or later version
Accessories	2 x AA batteries, user's manual, high quality silicon protector (option)
