The PKB-6880 programmable keyboard offers efficient customization, perfect for gamers, programmers, and repetitive typing tasks. With non-volatile ROM, it operates on any compatible PC after programming, no resident software needed. Users can set up to 30-character macros per key, while 43 relegendable keys allow personalized labeling for enhanced productivity.
| Keyboard | |
| Key Numbers | 104/ 105/ 109 keys (US/ EU/JP) |
| LED Indicator | Num Lock, Caps Lock, Scroll Lock, Programming Mode 1 (Green) / mode 2 (Red) |
| Programming Mode Switch | Mode 1 and Mode 2 by pressing switch |
| Key Switch Mechanism | Membrane-type Key switch with 10 million life cycle time |
| Total Travel Distance | 4 +/- 0.5 mm |
| Key Force (Peak Load) | 55 +/- 7 g |
| Interface | USB 1.1 Version |
| Input Power | 5Vdc, < 100mA |
| Programmable Features | |

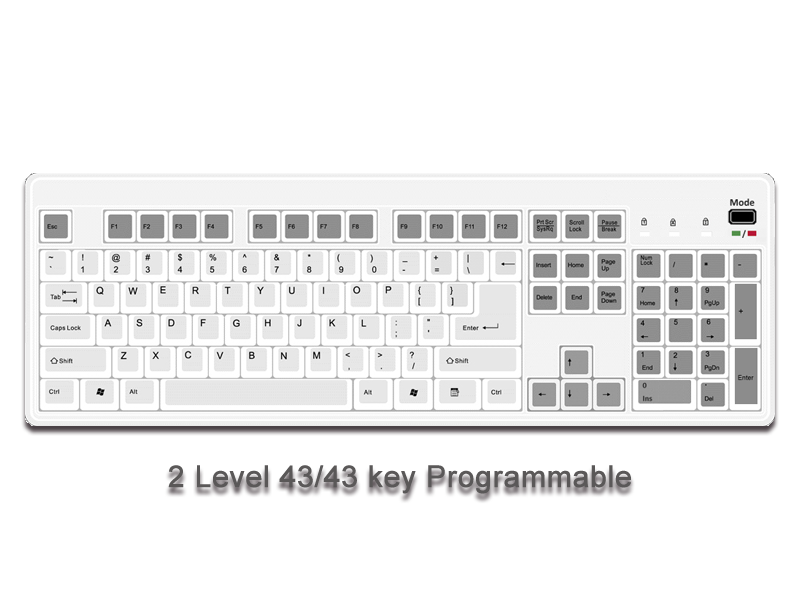

| Programmable Keys | 43/ 43 keys can be programmable including 43 relegendable keys |
| Multi-Level Program | Support 2 levels, equivalent to 86 keys with 30 characters per key |
| Software Compatibility | Support USB programming in Windows OS |
| Memory | All programmed data are stored in non-volatile ROM, without battery |
| Operating Temperature | 0 to 50 degrees Celsius (10% to 95% RH, no condensation) |
| Storage temperature | -10 to 55 degrees Celsius (10% to 95% RH, no consdensation) |
| Physical Dim. / Weight | 442.99 (L) x 134.0 (W) x 31.5 (H) / 0.9 kg (N. W.) |
| Box Dim. / Weight | 467 (L) x 175 (W) x 52 (H) mm / 1.04 Kg (G.W.) |

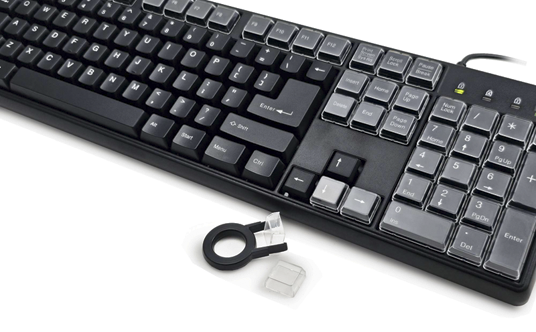

| Accessories | Keycap Puller, driver & user's manual downlad from website |
