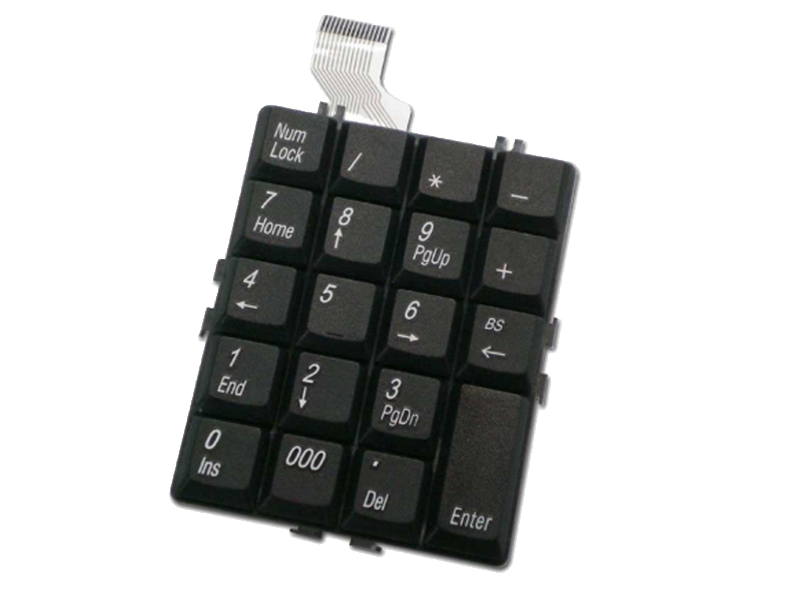

KPM-2600

Scissory-type Numeric Keypad Module, PC layout

KPM-2600

DESKTOP/INDUSTRIAL NUMERIC KEYPAD MODULE

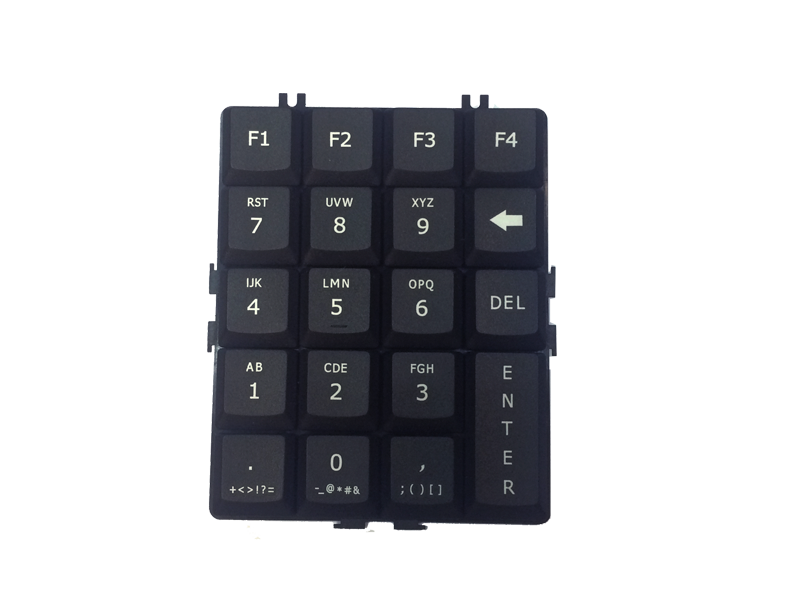

KPM-2600 is a numeric keypad module which is specially designed for desktop/ industrial use. Its modularized mechanical design provides flexible product configuration and easy maintenance. With scissor-type key switch, it makes the touch and feel of the keycaps exceptional. We also optionally provide controller and customized codes as demand.

FEATURE

  • Enhanced 19 keys
  • Scissor-type key switch mechanism makes good touch feeling
  • Low profile and tactile feedback for quiet/ easy typing
  • High reliable membrane contact technology
  • Modularized design provides flexible product configuration

SPECIFICATION

Key Numbers 19 keys
Key Switch Scissor-type key switch
Key Force 60 +/- 8 gm
Key Pitch 0.65 mm/ 17.35 mm (key centre-tocentre)
Traveling Distance 2.6 +/- 0.2mm
Input Power 5Vdc, 100mA
Layout Area 68.75 (L) x 85.28 (W) mm
Module Dimension 71.10 (L) x 88.35 (W) x 6.90 (H)mm
Operating Temperature 5 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius)
Storage temperature -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius)
Weight 30 +/- 2g (with metal plate)
Options USB keypad controller ( PS/2 also available)
