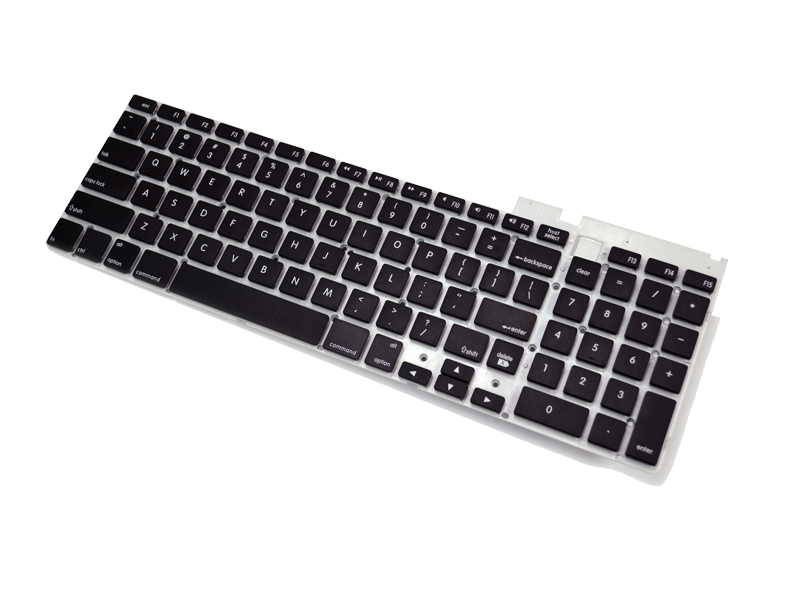

KBM-802

Chocolate scissory-type 2 Zone Keyboard Module, Square keycap

KBM-802

Compact Size KEYBOARD MODULE FOR INDUSTRY/ DESKTOP USE

KBM-802 is a chiclet compact size keyboard with numpad module which is specially designed for desktop/ industrial use. Its full size and modularized mechanical design provides flexible product configuration and easy maintenance. With scissor-type key switch, it makes the touch and feel of the keycaps exceptional. Furthermore, its square keycap and low profile design can help reduce the tiredness.

FEATURE

  • Enhanced 100/101 keys (US/ EU)
  • Scissor-type key switch mechanism makes good touch feeling
  • Low profie and tactile feedback for quiet/ easy typing
  • High reliable membrane contact echnology
  • Modularized design provides flexible product configuration

SPECIFICATION

Key Numbers 100/ 101 keys (US/ EU layout)
Key Switch Scissor-type key switch
Key Force 55 +/- 7 gm
Key Pitch 3.54 mm/ 19.05 mm (Key centre-to-centre)
Traveling Distance 2.1 +/- 0.2mm
Input Power 5Vdc, 100mA
Key Shape Square keycap design
Module Dimension 356.16 (L) x 121.55 (W) x 6.52 (H) mm
Operating Temperature 0 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius)
Storage temperature -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius)
Weight 300 +/- 5g (with metal plate)
Optons USB controller (PS/2 also available), TouchPad Module
