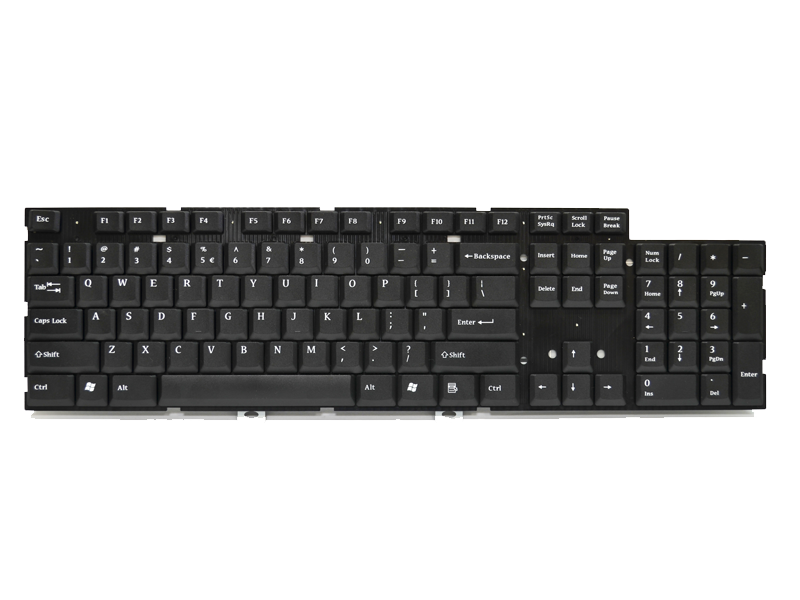

KBM-2688 is a full size keyboard module which is specially designed for desktop/ industrial use. Its compact size and modularized mechanical design provides flexible product configuration and easy maintenance. With scissor-type key switch, it makes the touch and feel of the keycaps exceptional. We also optionally provide controller or customized codes and touchpad module as demand.
| Key Numbers | 104/ 105 keys (US/ EU layout) |
| Key Switch | Scissor-type key switch |
| Key Force | 60 +/- 8 gm |
| Key Pitch | 0.85 mm/ 19.05mm (key centre-to-centre) |
| Traveling Distance | 2.8 +/- 0.2mm |
| Input Power | 5Vdc, 100mA |
| Layout Area | 427.25 (L) x 112.80 (W) mm |
| Module Dimensnion | 434.55 (L) x 118.80 (W) x 6.90 (H) mm |
| Operating Temperature | 5 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius) |
| Storage temperature | -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius) |
| Weight | 350 +/- 10g (with metal plate) |

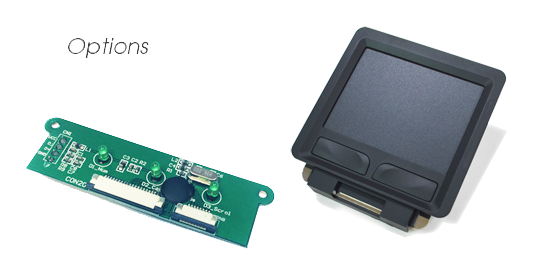

| Options | USB Keyboard Controller (PS/2 also available), TouchPad Module |
