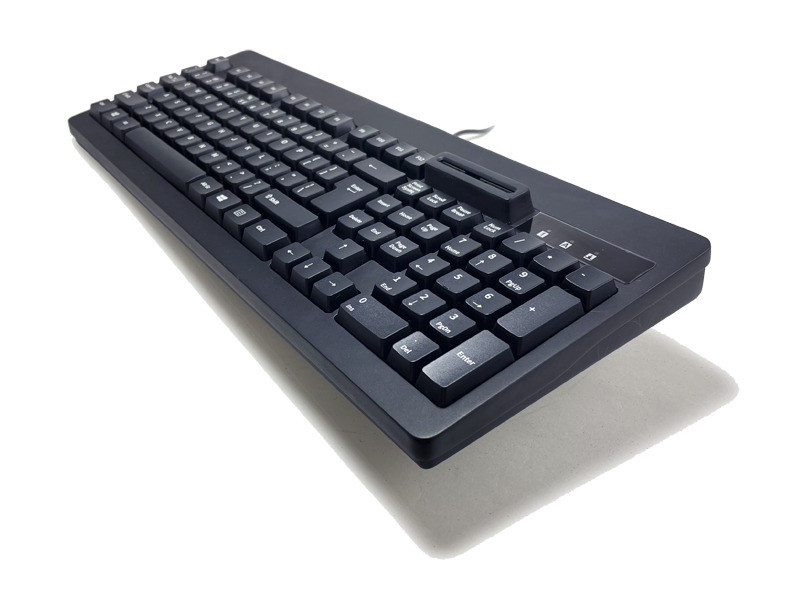

KB-8088S
Smart Card USB Keyboard
KB-8088S is a cutting-edge IC card reader equipped for smartcard-enabled identification systems. With seamless integration into E-Banking, E-Payment, Transportation, healthcare applications and E-Government applications, KB-8088S ensures unparalleled security.
Compliant with PS/SC and CCID standards, installation is effortless. This keyboard is tailored for easy integration within your PC setup. Compatible with ISO 7816 Class A, AB, and C memory and microprocessor smart cards (T=0, T=1), the KB-8088S guarantees versatile performance.
FEATURE
- Built-in IC Card Reader: Supports smartcard-enabled identification systems for secure authentication.
- Versatile Applications: Ideal for E-Banking, E-Payment, Transportation, healthcare, and E-Government sectors.
- PS/SC & CCID Compliant: Ensures effortless installation and broad compatibility.
- ISO 7816 Smart Card Support: Compatible with Class A, AB, and C smart cards (T=0, T=1).
- Seamless PC Integration: Designed for easy setup within any PC environment.
- Enhanced Security: Guarantees robust performance for high-security applications.
SPECIFICATION
| Keyboard | |
| Key Numbers | 104/ 105/ 109 keys (US/ EU/ JP) |
| Key Switch Mechansim | Membrane-type Key switch with 20 million life cycle time |
| Total Travel Distance | 4 +/- 0.4 mm |
| Key Force (Peak Load) | 50 +/- 7g |
| Interface | USB 1.1 Version |
| Input Power | 5Vdc, < 100mA |
| LEDs Indicator | LumLock, CapsLock, Scrollock, Smart Card Reader Read/Write |
| Smart Card Reader | |
| Standard | ISO 7816 |
| Protocols | T=0,T=1.2-wire; SLE4432/42 (S=10), 3-wire, SLE4418/28 (S=9), 12C (S=8) |
| Reading Rate/Frequency | 420 Kbps/ up to 8Mhz |
| Card Type Support | 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C |
| API Support | PCSC, CTAPI, Synchronous-API, OCF |
| PCSC Driver Support | Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux |
| Reliability | 100K card insertions (500K life cycle time also available) |
| Others | |
| Operating Temperature | 0 to 50 degrees Celsius (10% to 95% RH, no condensation) |
| Storage temperature | -10 to 65 degrees Celsius (10% to 95% RH, no consdensation) |
| Physical Dimension | 446.0 (L) x 170 (W) x 32 (H) mm/ 0.84 kg (N.W.) |
| Box Dim. / Weight | 470 (L) x 205 (D) x 35 (H) mm/ 1.05 Kg (G.W.) |
