Digimore Electronics Co., Ltd

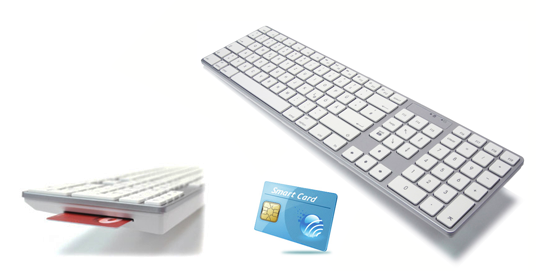

KB-801S

LOW PROFILE SMART CARD USB KEYBOARD FOR PC(Mac also available)

With the latest technology of IC card reader, the KB-801S, stylish & low profile smart card USB keyboard is designed to meet your security needs in different applications such as in E-Banking, E-Payment, Transportation, E-Government. Being PS/SC and CCID compliant device, the KB-801S is easy to install and use a sit is specifically designed to be integrated in a PC environment. Its drivers are compatible with Windows OS and Linux. (Mac also available)

FEATURE

Enhanced 109/110 keys (US/ EU)
Scissor-type key switch mechanism makes good touch feeling

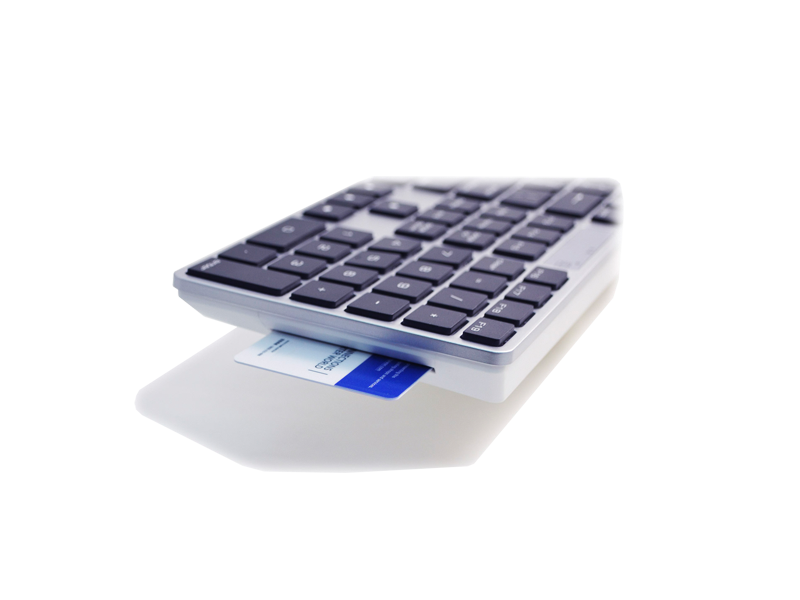

Low profile keyboard with side insertion
PC/SC, CCID Compliance
High reliable membrane contact technology
Fully compatible with Windows ME/2000/XP or later (Mac also available)

SPECIFICATION

Key Numbers	109/ 110 keys (US/ EU layout)
Key Switch	Scissor-type key switch
Key Force	55 +/- 7 gm
Traveling Distance	2.1 +/- 0.2mm
LED Indicator	3 LEDs for NumLock, CapLock, Read/Write LED
Input Power	5Vdc, 100mA
Special Function Keys	Play, Mute, Volume Up, Volume Down, Sleep
Interface	USB 1.1 or 2.0 compliance
Smart Card Reader
Direction of Insertion	Right-side insertion
Standard	ISO7816 Class A, B and C (5V, 3V, 1.8V), T=0 and T=1
Protocols	T=0 and T=1, 2=wire; SLE 4432/42 (S=10), 3-wire; SLE441828 (S=9), 12C (S=8)
Read Speed	344 Kbps
Compliance	PC/ SC, CCID
PC/ SC Driver Support	Windows 98(SE)/ME/2K/XP (32 bit), 2003 Server Win, Windows NT,
PC/ SC Driver Support	Windows CE 5.0/ CE.NT, Windows XP (64 bit), Vista (32/ 64 bit), Windows 7, Linux
Reliability	100 K card insertions
Others
Dimension (mm)	434.2 (L) x 115.2 (W) x 25.0 (H)
Weight (kgs)	0.65 (N.W.) / 0.75 (G.W.)
Packing Information	20 pcs/ctn; 1.38 cuft/ctn; 14.8 kgs (G.W.)
Option	100% silicon keyboard skin
