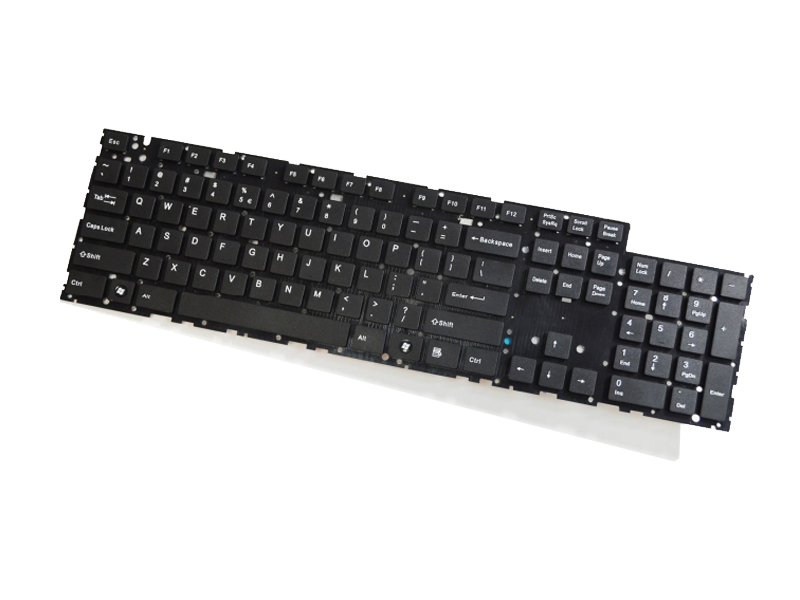

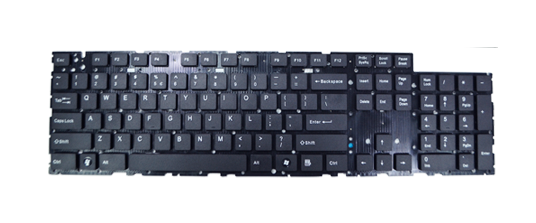

KBM-801

Chocolate scissory-type Full Size Keyboard Module, Square keycap

KBM-801

100% CHOCOLATE KEY KEYBOARD MODULE

KBM-801 is a chiclet keyboard module which is specially designed for desktop/ industrial use. Its full size and modularized mechanical design provides flexible product configuration and easy maintenance. With scissor-type key switch, it makes the touch and feel of the keycaps exceptional. Furthermore, its square keycap and low profile design can help reduce the tiredness.

FEATURE

  • Enhanced 104/105 keys (US/ EU)
  • Scissor-type key switch mechanism makes good touch feeling
  • Low profile and tactile feedback for quiet/ easy typing
  • High reliable membrane contact technology
  • Modularized design provides flexible product configuration

SPECIFICATION

Key Numbers 104/ 105 keys (US/ EU layout)
Key Switch Scissor-type key switch
Key Force 55 +/- 7 gm
Key Pitch 3.54 mm/ 19.05 mm (Key centre-to-centre)
Traveling Distance 2.1 +/- 0.2mm
Input Power 5Vdc, 100mA
Layout Area 434.5 (L) x 118.85 (W) mm
Module Area 434.5 (L) x 118.8 (W) x 6.2 (H) mm
Operating Temperature 0 to 55 degree Cesius (10% to 85% RH, 25 degree Celsius)
Storage temperature -10 to 60 degress Celsius (5% to 90% RH, 25 degree Celsius)
Weight 400 +/- 5g (with metal plate)
Options USB Keyboard Controller (Bluetooth also available), TouchPad Module
